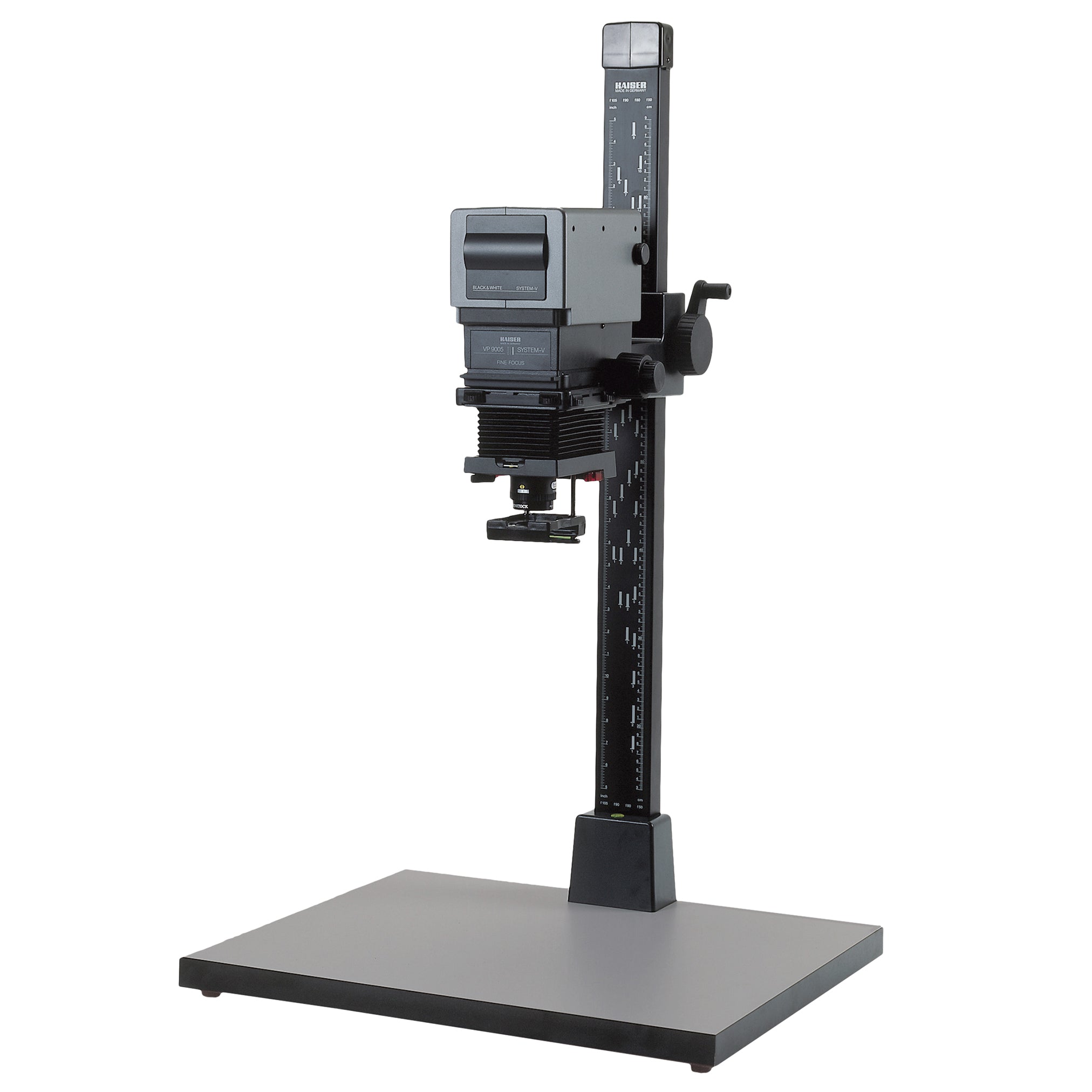

Black and white enlarger for all formats up to 6 x 9 cm and lenses up to 105 mm focal length.
Book image stage equipped with AN glass above and flat glass below, additional format mask 6 x 7 cm.
Characteristics
- Focusing with additional fine adjustment.
- Height adjustment with weight compensation via built-in roller spring.
- Pivoting and height-adjustable filter holder for rectangular filters
- unframed Multigrade® filters, with diffuser disc for integral measurement.
- Without filter drawer.
Technical data
- Lamp: Opal lamp 75 W, E 27
- supply line: approx. 2.50 m
- filter compartment: 85 x 85 mm
- Column (HxWxD): approx. 1000 x 70 x 35 mm
- Distance optical axis - base: approx. 220 mm
- Base board (WxDxH): approx. 600 x 500 x 32 mm
- Can be converted into a reproduction stand.
scope of delivery
Enlarger including book stage, lamp, two lens retaining rings and dust cover
A lens is not included in the delivery, you can order this from our shop.
