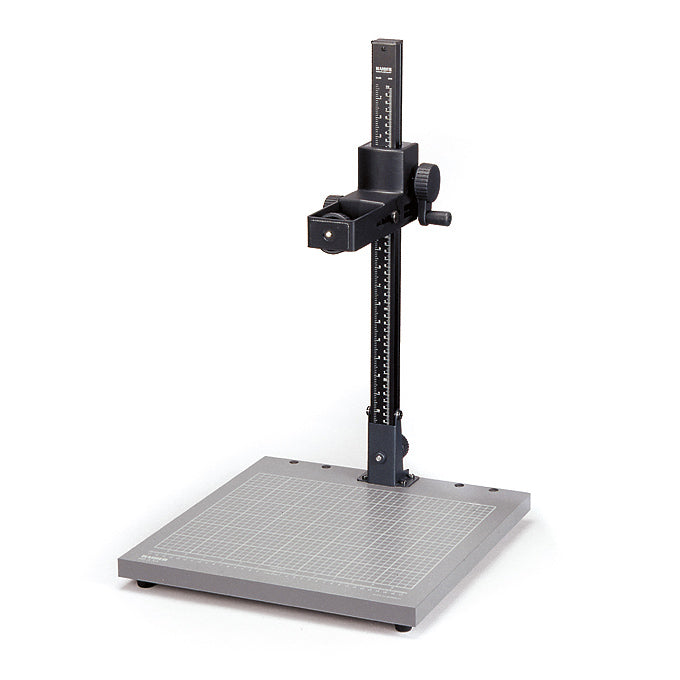

KAISER Repro Stand RS 2 CP (foldable)

Repro stand for reproduction or digitization of images, objects, negatives.

Foldable, portable design.

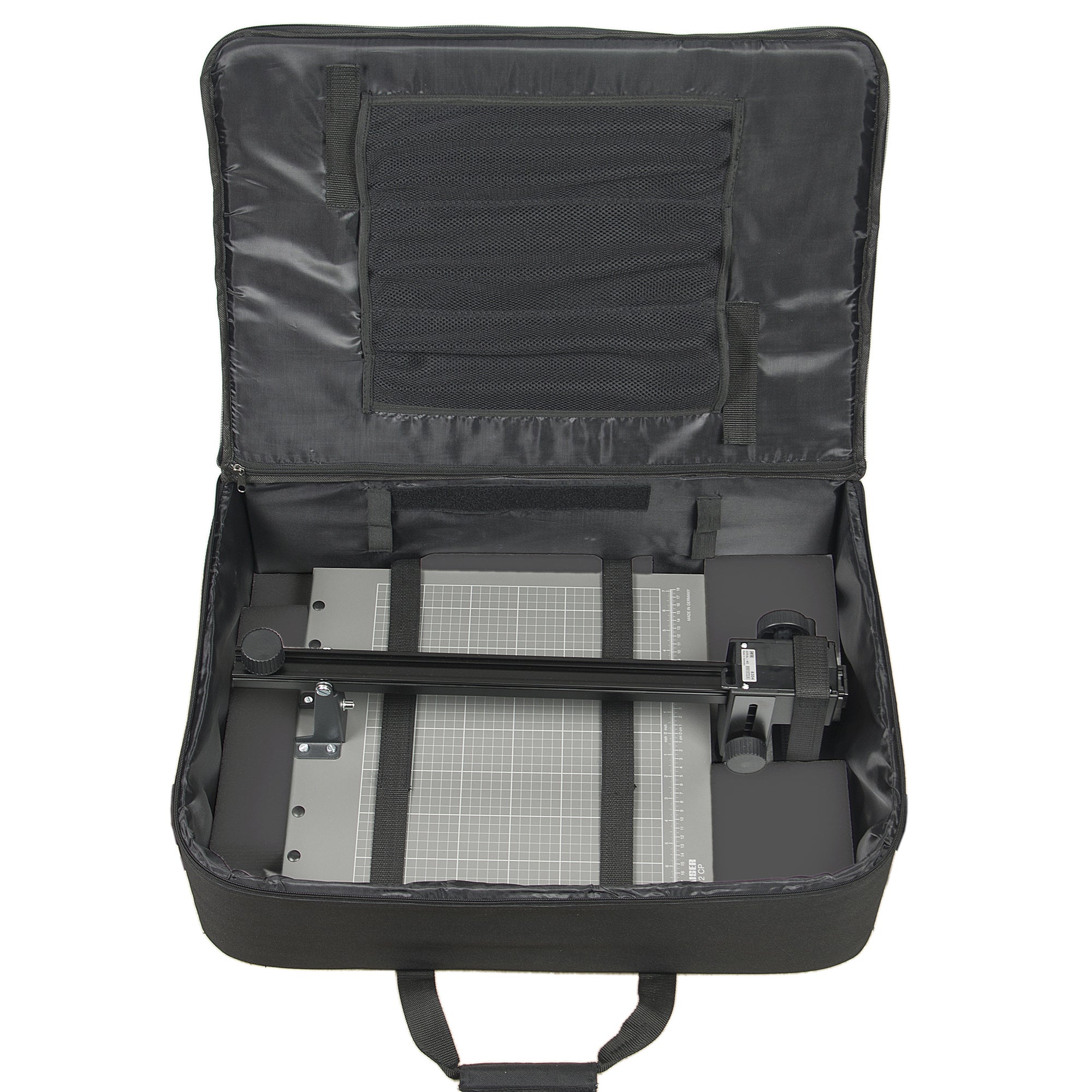

Complete in a sturdy 67 x 47 x 23 cm carrying bag with handle and wide shoulder strap.

For cameras up to 1.5kg in weight.

Characteristics

• Non-reflective, matt grey coated base board with printed fine grid and cm and inch scale.
• Guide column made of matt black anodized aluminum profile tube with cm and inch scale.

• Height adjustment via plastic-bearing friction drive with hand crank.
• Camera arm can be adjusted horizontally to change the distance from the guide column, adjustment range approx. 7 cm.
• Base board (WxHxD): approx. 400 x 25 x 420 mm
• Height of the guide column: approx. 60 cm
• Connection thread B 1/4.

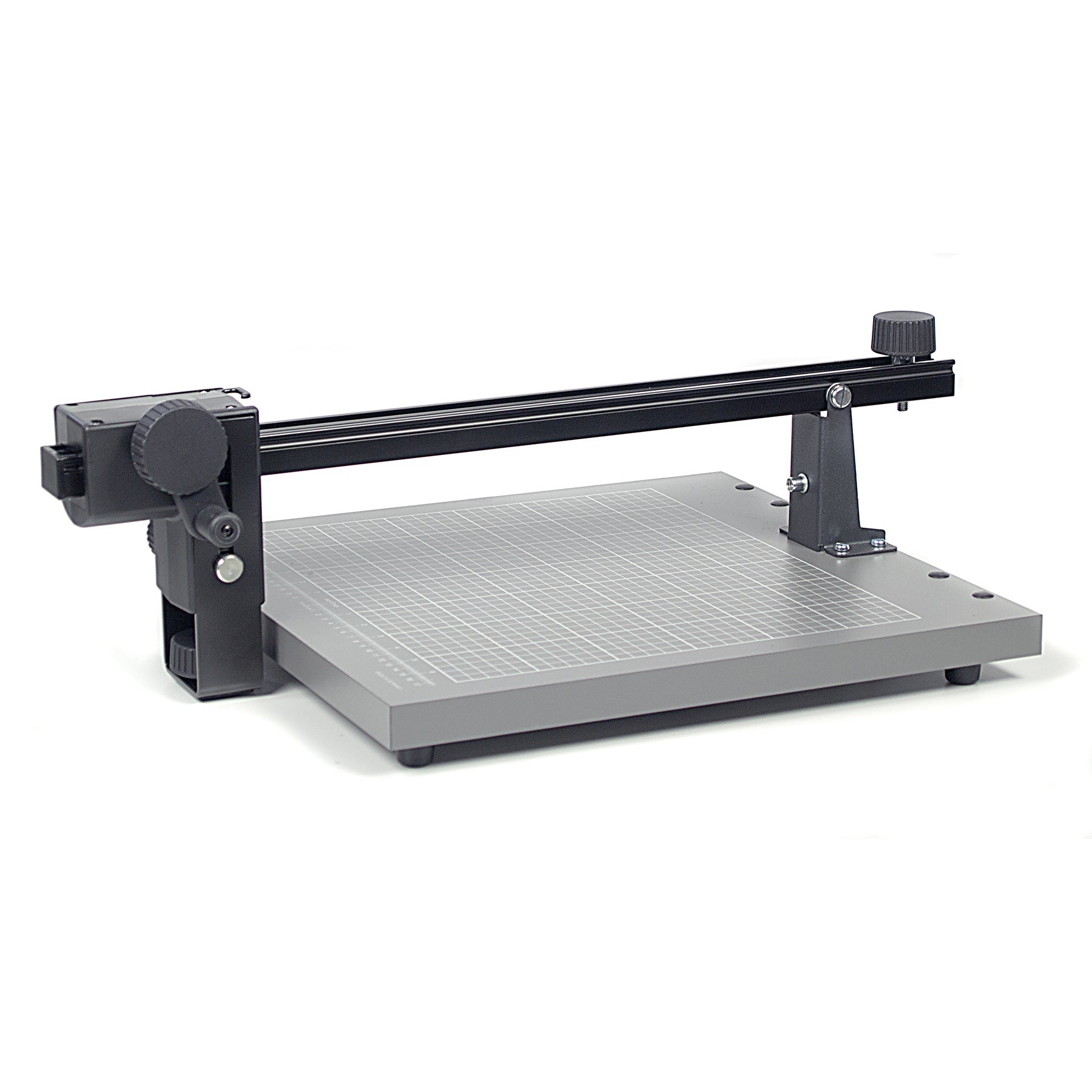

• Column can be folded flat against the base board.
• Load capacity: max. 1.5 kg

Downloads

> Operating instructions

Information on product safety
