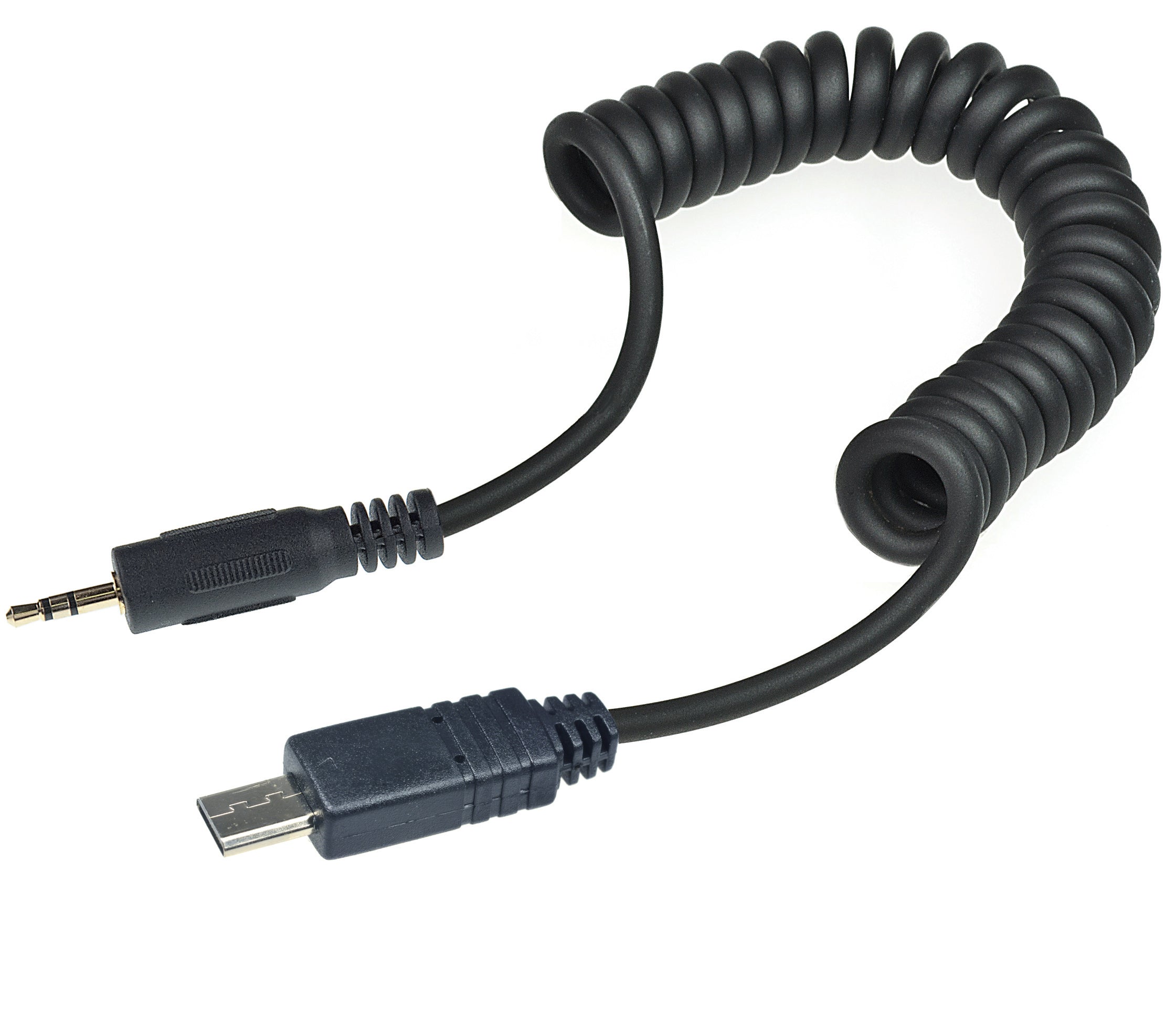

KAISER camera release cable

Connection cable from your camera to the Kaiser foot switch or to the FILMOMAT Autocarrier.

Note: To connect to the FILMOMAT Autocarrier, you will also need a 2.5mm to 3.5mm jack adapter. You can also order this from us and find it in the product recommendations on the left side of this page.

An extension cable is also available.

1C

for Canon, Fujifilm, Olympus, Pentax, Samsung and Sigma cameras with a 2.5 mm jack connector:

Canon: 60D, 70D, 77D, 80D, 90D, 100D, 200D, 250D, 300D, 350D, 400D, 450D, 500D, 550D, 600D, 650D, 700D, 750D, 760D, 800D, 850D, 1000D, 1100D, 1200D, 1300D, 2000D, M5, M6 Mark II, R, R6 (Mark II), RP, PowerShot G1X (Mark II / III), G3X, G5X (Mark II), G10, G11, G12, G15, G16, R7, R8, R10, R50V, R100 M5, M6

Fujifilm: GFX 50R/50S (II)/100(S/SII), X-A5, X-A7, X-E1, X-E2(s), X-E3, X-E4, X-H1, X-H2S, X-T10, X-T20, X-T30 (II), X-T50, X-T100, X-T200, XF10,

Olympus: OM-D E-M1 Mark II/III, E-M1X, E-M5 Mark III, OM: OM-1, OM-1II, OM-5

Pentax: 17, *istDL(2), *istD(s), K-1 (Mark II), K-3 (II/III), K-5, K-5 II(S), K-7, K10D, K20D, K-30, K50, K100D, K110D, K200D, K500, 645D, 645Z

Samsung: GX-1L, GX-1S, GX-10, GX-20, NX 5, NX 10, NX 11, NX 100

Sigma: fp (L), SD1 Merrill, SD 14, SD15

Errors and technical changes excepted.

3C

for Canon cameras with N3 connection:

Canon: 1D C, 1D

Errors and technical changes excepted.

1N

for Nikon and Fujifilm cameras with 10-pin connector:

Nikon: D1, D1H, D1X, D2, D2H(s), D2X(s), D3(s), D3(x), D4, D4S, D5, D6, D200, D300(s), D500, D700, D800(E), D810, D850, Z8, Z9

Fujifilm: S3pro, S5pro

Errors and technical changes excepted.

3N

for Nikon D, P and Z series (partially):

Nikon D90, D600, D610, D750, D780, D3100, D3200, D3300, D5000, D5100, D5200, D5300, D5500, D5600, D7000, D7100, D7200, D7500, Df, Coolpix A, P950, P1000, P7700, P7800, Z5, Z6 (II/III), Z7 (II)

Errors and technical changes excepted.

1P

for Panasonic and Leica cameras with 2.5 mm jack connection:

Panasonic: FZ20, FZ30, FZ50, FZ100, FZ150, FZ200, FZ300, FZ1000 (II), FZ2000, G1, G2, G3, G5, G6, G9 (II), G10, G70, G81, G91, G97, GF1, GH1, GH2, GH3, GH4, GH5(S/II), GH6, GH7, GM1, GX1, GX7, GX8, GX9, L1, L10, LC1, S1 (II), S1 (II) E, S1H, S1R (II), S5 (D), S5II(X), S9

Leica: Digilux 2, Digilux 3, SL2(-S), SL3, V-Lux (Typ 114), V-Lux 1, V-Lux 2, V-Lux 3, V-Lux 4, V-Lux 5

Errors and technical changes excepted.

3L

for Olympus PEN, OM-D, E-series (partially)

Olympus: E-30, E-410, E-420, E-510, E-520, E-600, E-620, PEN: E-P1, E-P2, E-P3, E-P5, E-PL2, E-PL3, E-PL5, E-PL6, E-PL7, E-PL8, E-PM1, E-PM2, PEN-F, OM-D E-M1, OM-D E-M5 (Mark II), OM-D E-M10 (Mark II), SH1, SP-100EE, SP-510UZ, SP-550UZ, SP-560UZ. SP-565UZ, SP-570UZ, SP-590UZ, SP-810UZ, Stylus 1, SZ-11, SZ-20, SZ-30MR, XZ-1, XZ-2

Errors and technical changes excepted.

2S

for Sony cameras with multi-interface connection

Sony Alpha: 1(II), 7(II/III/IV), 7R(II/III/IIIA/IV/IVA/V), 7S(II/III), 9(II/III), 58, 68, 99II, 3000, 5000, 5100, 6000, 6100, 6300, 6400, 6500, 6600, HX50V, HX60(V), HX80, HX90(V), HX300, HX350, HX400(V), HX600, NEX-3N, RX10(II/III/IV), RX100 II/III/IV/V/VI/VII, RX1RII, ZV-1

Errors and technical changes excepted.

1F

for Fujifilm X-series cameras (partially)

Fujifilm GFX 50S, X-A1, X-A2, X-A3, X-A5, X-A7, X-A10, X30, X70, X100F, X100T, X-100 (V/VI), XF10, S1

Errors and technical changes excepted.

2N

for Nikon, Fujifilm and Pentax cameras with 3.5 mm jack connection

Errors and technical changes excepted.
