Delivery time within Germany: approx. 2 - 3 weeks (item is made after order)
Available
Replace the existing light source of your magnifying device with a long-lasting, modern LED surface light. The individual adaptation is supplied by Heiland electronic.
The light sources are suitable for color and black and white papers.
We offer corresponding control units.

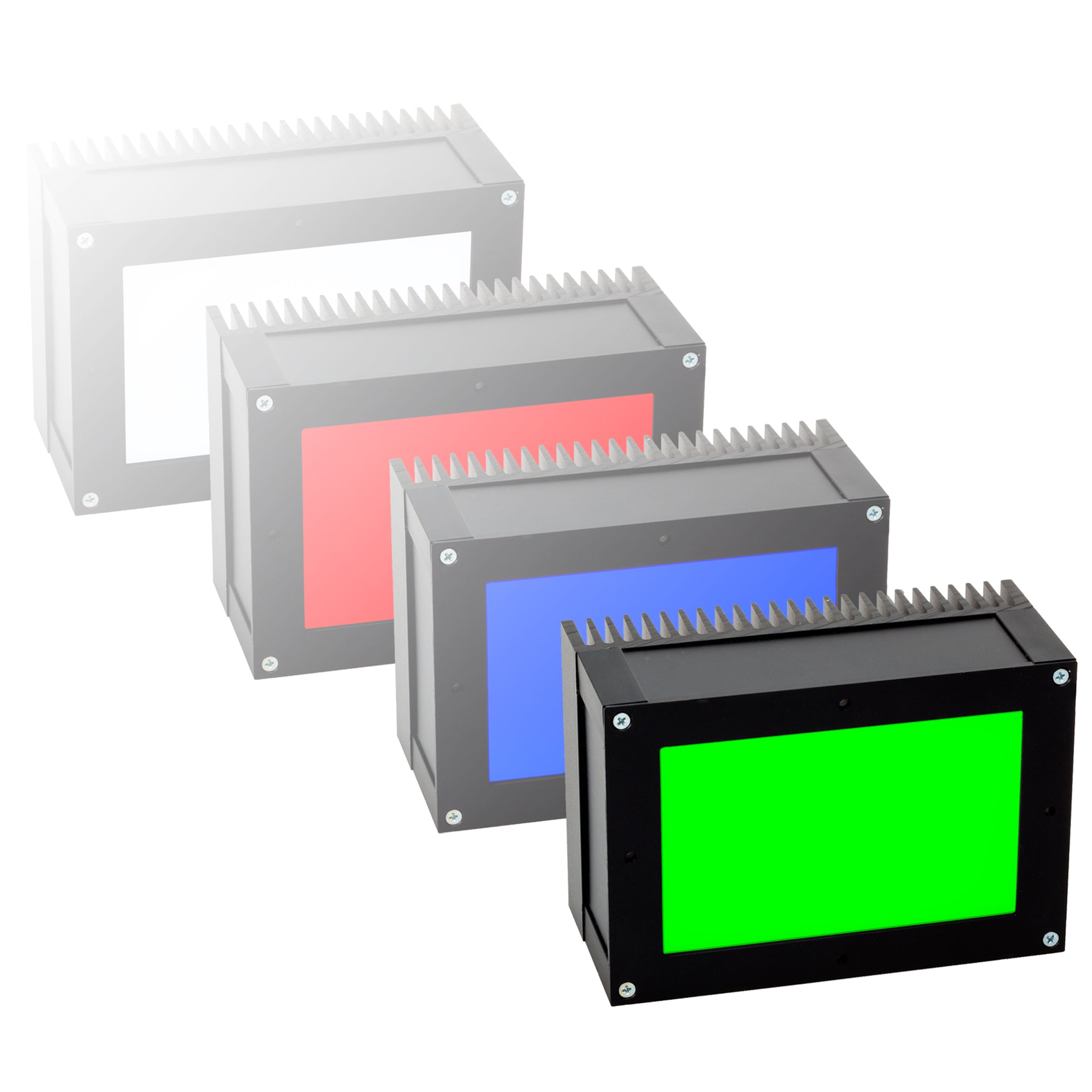

By using LEDs in the primary colors red, green and blue, white light can be used for focusing as well as each color can be controlled separately. Mixed light consisting of several colors is also possible.
The light colors are precisely coordinated and have a maximum deviation of +/-2 nanometers from the specified wavelength.
Precise switching on and off without a shutter is easily possible. The light color and intensity are set reproducibly.
The advantages at a glance
Full contrast control from gradation 00 ...5.
No light drift: Stable light from the first tenth of a second guarantees reproducible magnification.
No fan: Vibration-free and noiseless magnification without stirring up dust.
No heating of the negative, thus avoiding focus deviations.
Easy positioning of paper and tools for dodging thanks to integrated red light.
Extremely effective lighting – enables significantly shorter exposure times than halogen light.
Variable exposure intensity for different magnification scales.
Never change a lamp again.
White light makes focusing easier.
Even illumination right into the corners.
The ideal solution for archives – no thermal stress on glass plate negatives.
Durable, solid metal construction.
Notes
To control the LED light source, depending on the intended use, you will also need one of the components listed under recommendations on this page, such as an LED or split grade controller.
If you have any questions about the product or installation, please use our contact form or send us a message directly to info@editionargentum.de
We have been using Heiland electronic products for many years in our photo lab and in workshops and are happy to advise you.
Installation
Enlarger model
Special features
V35
The lamp and filter module are replaced by a high-intensity LED. The existing mixing box remains. The module is installed by the user.
Leitz IC
A module of 400 LEDs and a diffuser disc in front of it illuminate far more than the KB format.
The adapter can be installed by the user.
Leitz IIC
A module of 400 LEDs and a diffuser disc in front ensure an evenly illuminated area of 6x9cm.
The adapter replaces the opal lamp unit and can be installed by the user.
DeVere 12x16inch
Over 6000 LEDs and a diffuser disc in front ensure an evenly illuminated area of 12x16 inches. The unit is supplied as a mixing box replacement, which the user can install himself. Power is supplied via an integrated power pack with 230V mains voltage. The power consumption is only 420W. A quiet and vibration-free cross-flow fan is built into the LED cold light head.
