Niedrigster Preis in den letzten 30 Tagen: 1.999,00 €
Shipping time within Germany:approx. 7- 10 working days
Made to order

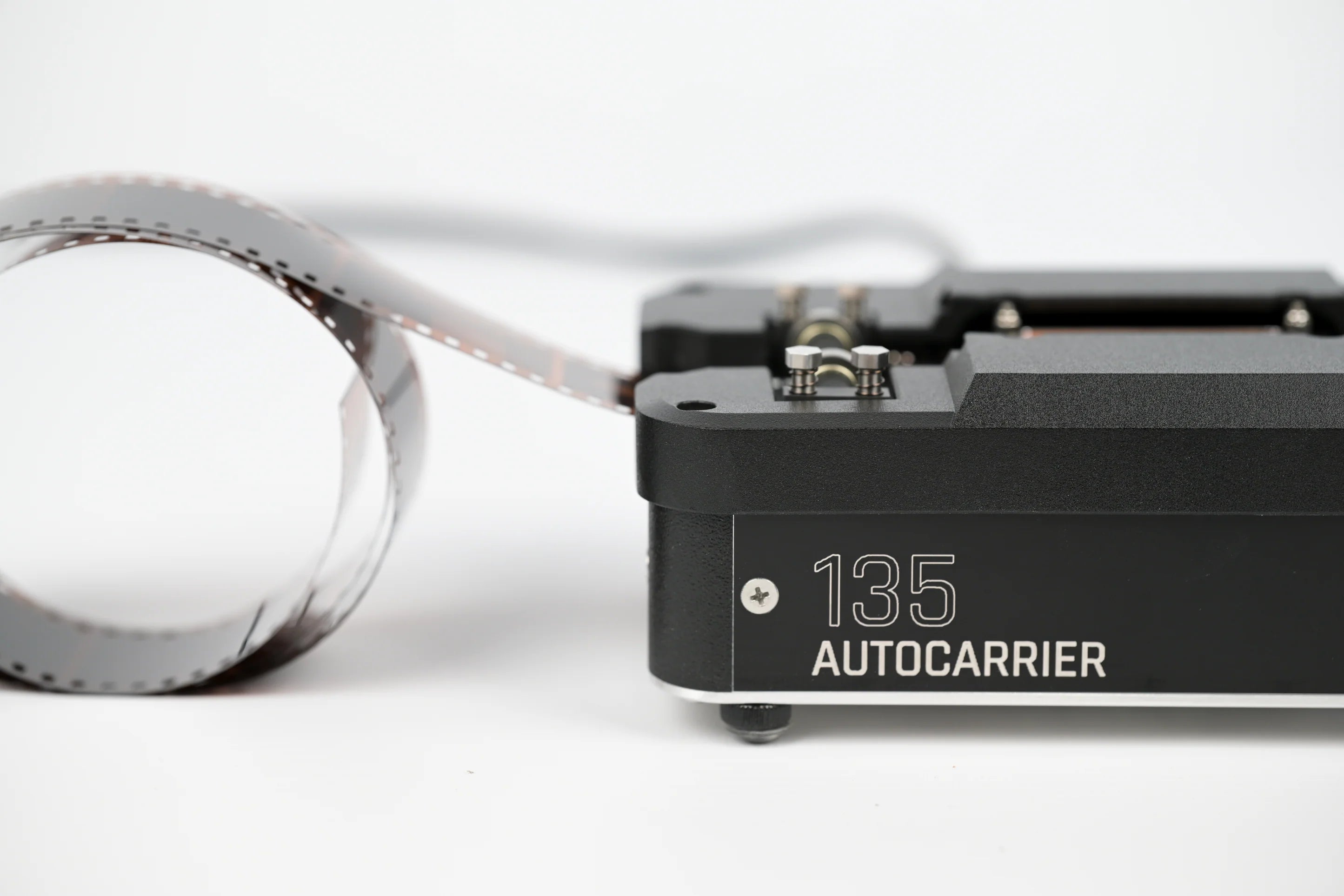

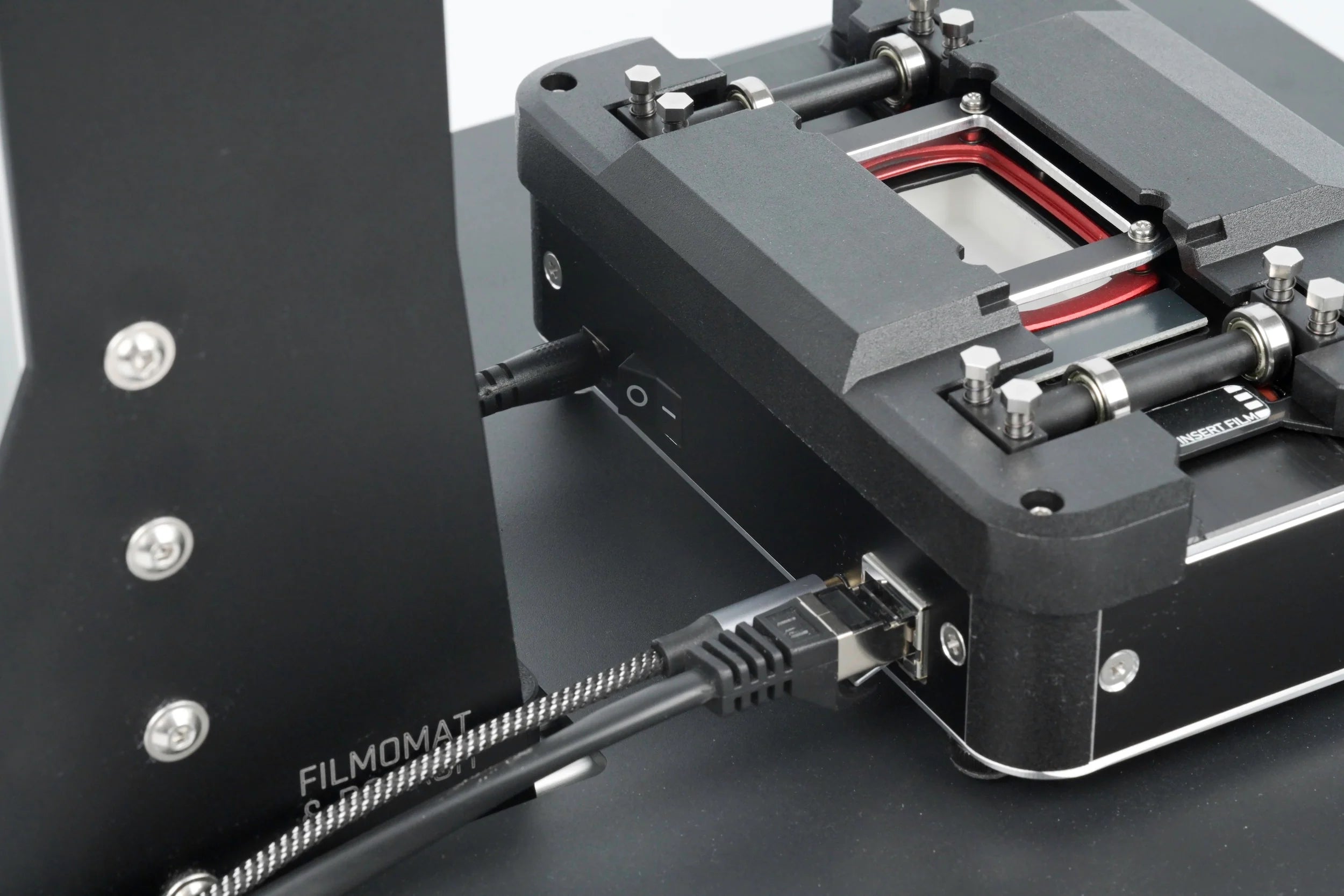

135 Autocarrier. Automatic 35mm Scanning System
New Version 2026: With wider film image window, improved cable management, and enhanced light source homogeneity!
The Autocarrier transports film at an impressive speed of up to three frames per second, allowing a complete 35mm film to be scanned in 12 seconds.

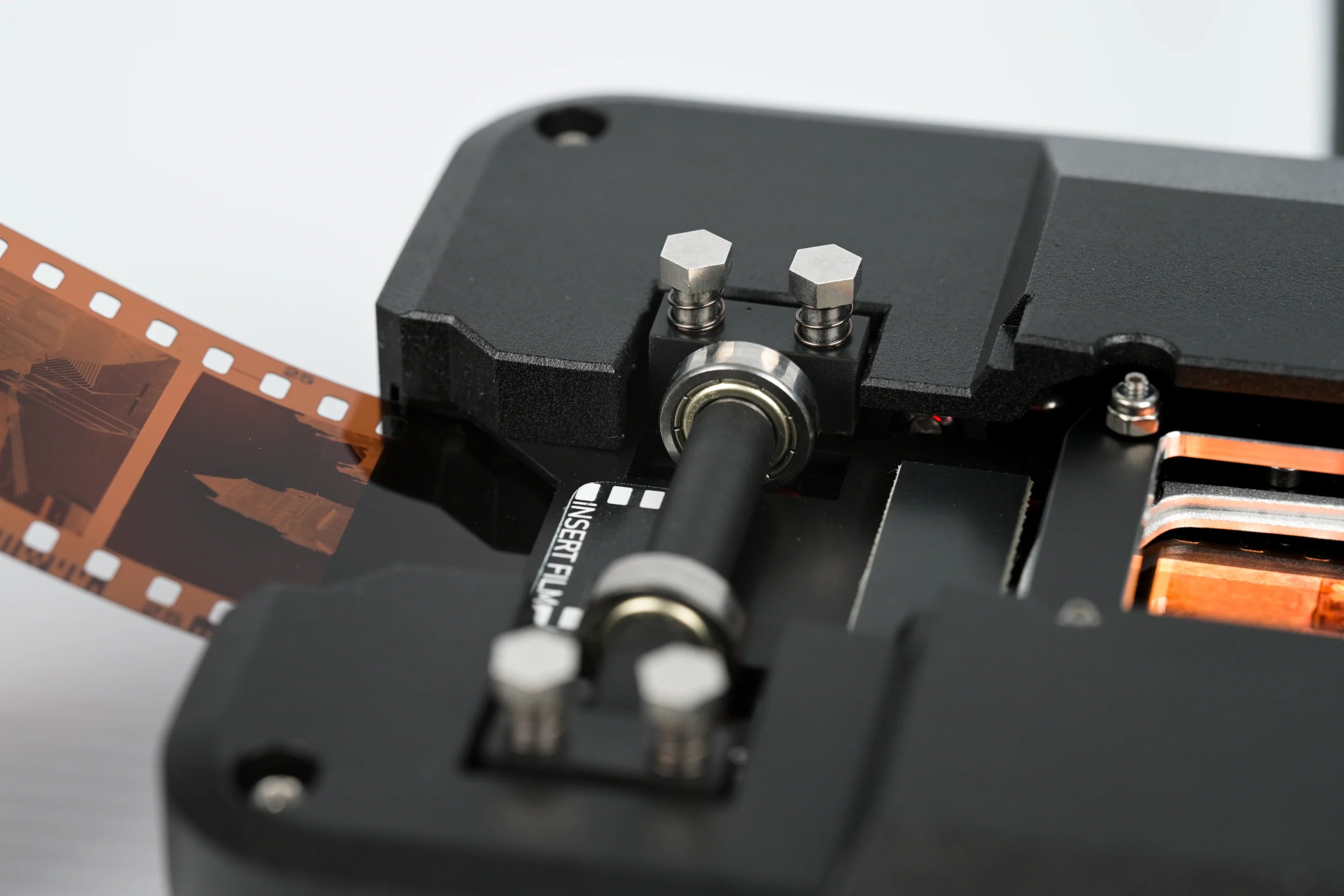

Your camera is automatically triggered for each frame. During image capture, a full-frame BOBACH pressure mask – the same technology used in professional Fuji Frontier scanners – presses each image down and holds it securely in place. This ensures absolute flatness for optimal sharpness in every shot.

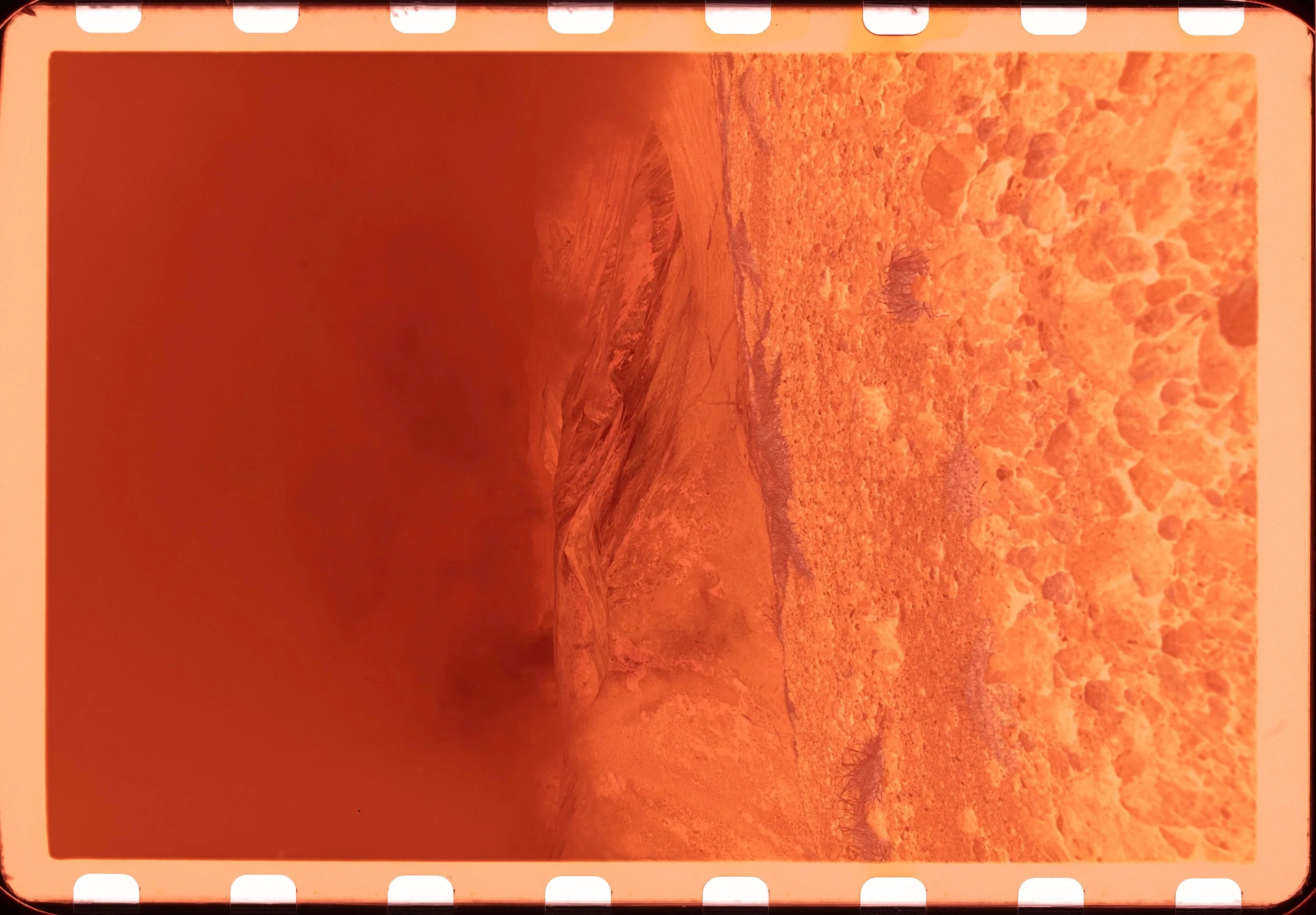

The extra-wide film image window allows for the capture of the entire image field, including the border (see example shot). The specially developed image sensor intelligently and precisely recognizes and positions each 35mm individual frame, ensuring consistently perfect alignment with every scan.
The special image sensor intelligently and precisely recognizes and positions each 35mm image, guaranteeing consistent, perfect alignment with every scan.
Twenty full-spectrum LEDs (5000 K, CRI>95) ensure perfect color accuracy and uniform illumination of the entire image.
The brightness of the LEDs is set to allow shooting at medium aperture and low ISO.
In combination with Filmomat's SmartConvert software and SmartConvert control panel, this system replicates the functions of a professional lab scanner.
Features
Impressive speed of up to 3 frames per second.* The speed is continuously adjustable down to approx. 0.8 frames per second.
Custom frame sensor that recognizes and positions each frame with the highest precision.
BOBACH full-frame pressure mask for absolute flatness and optimal sharpness.
Automatic camera triggering via 3-pin 3.5mm jack connection. Adapter cable for your camera is not included!
Twenty full-spectrum LEDs (5000K) for homogeneous illumination and high color accuracy.

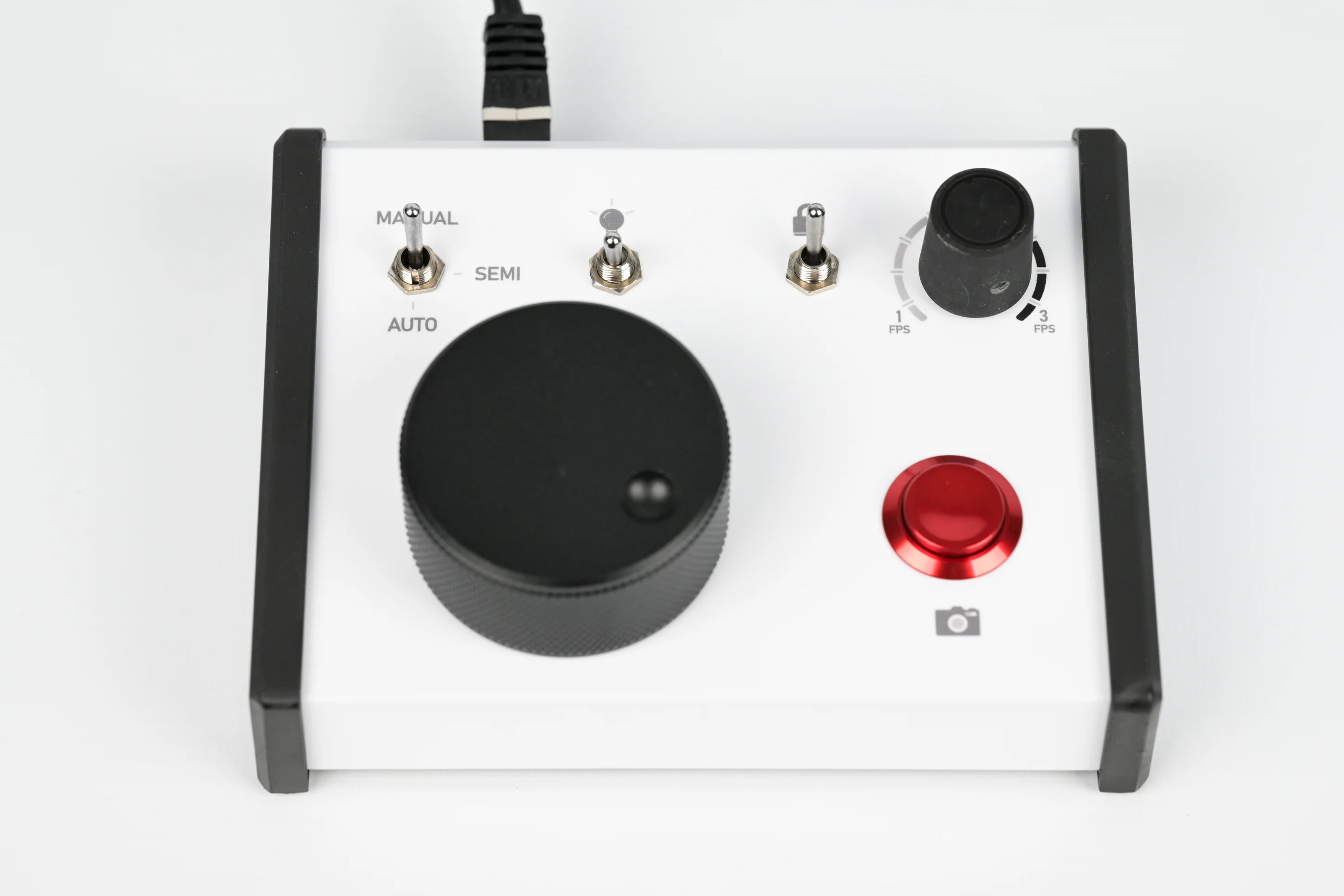

3 modes: Auto, Manual, Semi (Semi-automatic).
Beautifully designed control panel with exceptional haptic feedback.
Compatible with uncut film and pre-cut strips as short as 3 frames.
The Operating Modes

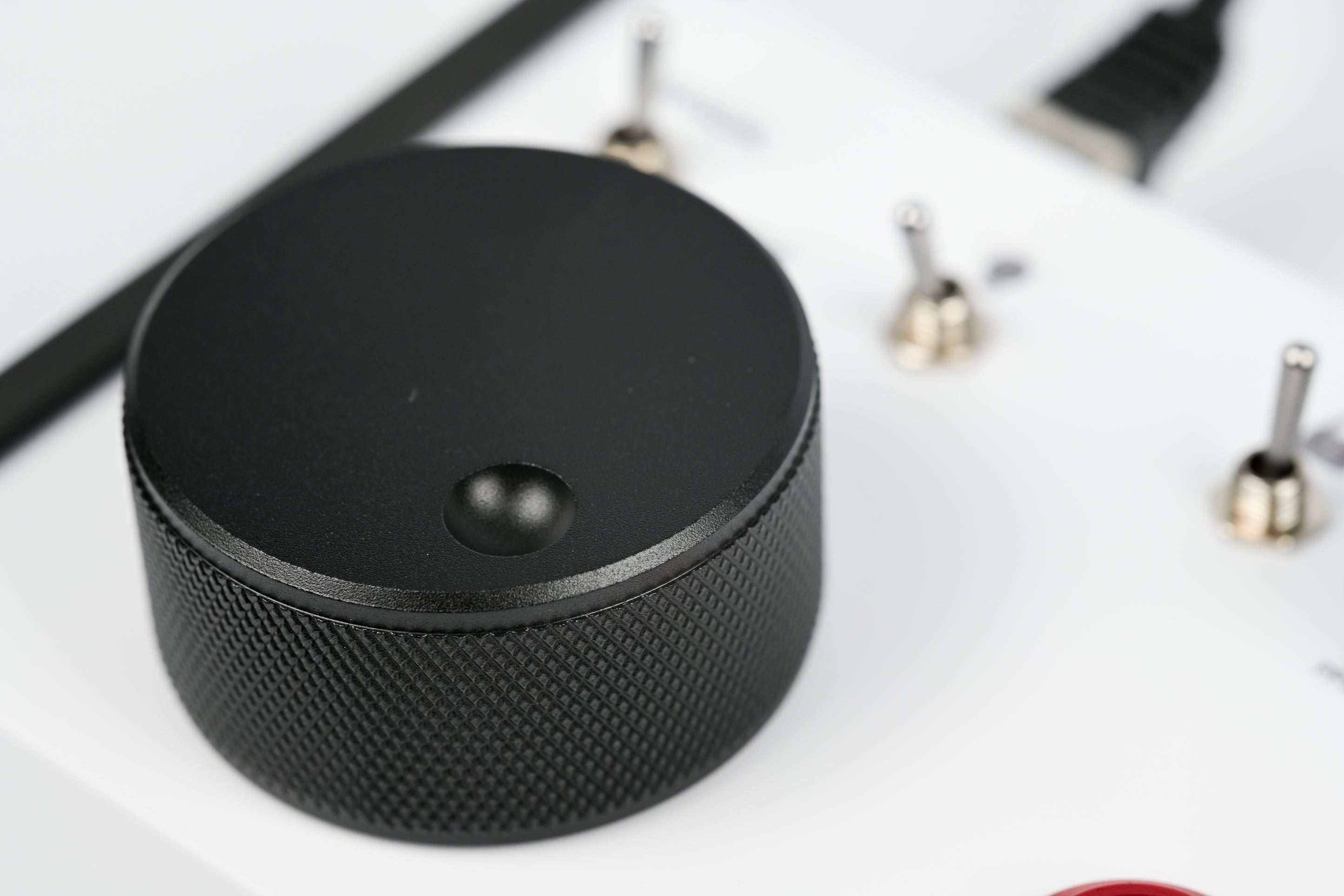

Manual Mode: Manually advance the film with the handwheel and trigger the camera.
Automatic Mode: Simply load the film, and the Autocarrier automatically transports the film, positions the images, and releases the camera. Works best with well-exposed negatives.
Semi-Automatic Mode: After manually positioning the first two frames, the Autocarrier stores the frame distance. After each press of the camera trigger, the carrier transports the film by the measured distance. This mode is ideal for slide films or underexposed films where the automatic mode does not work correctly.

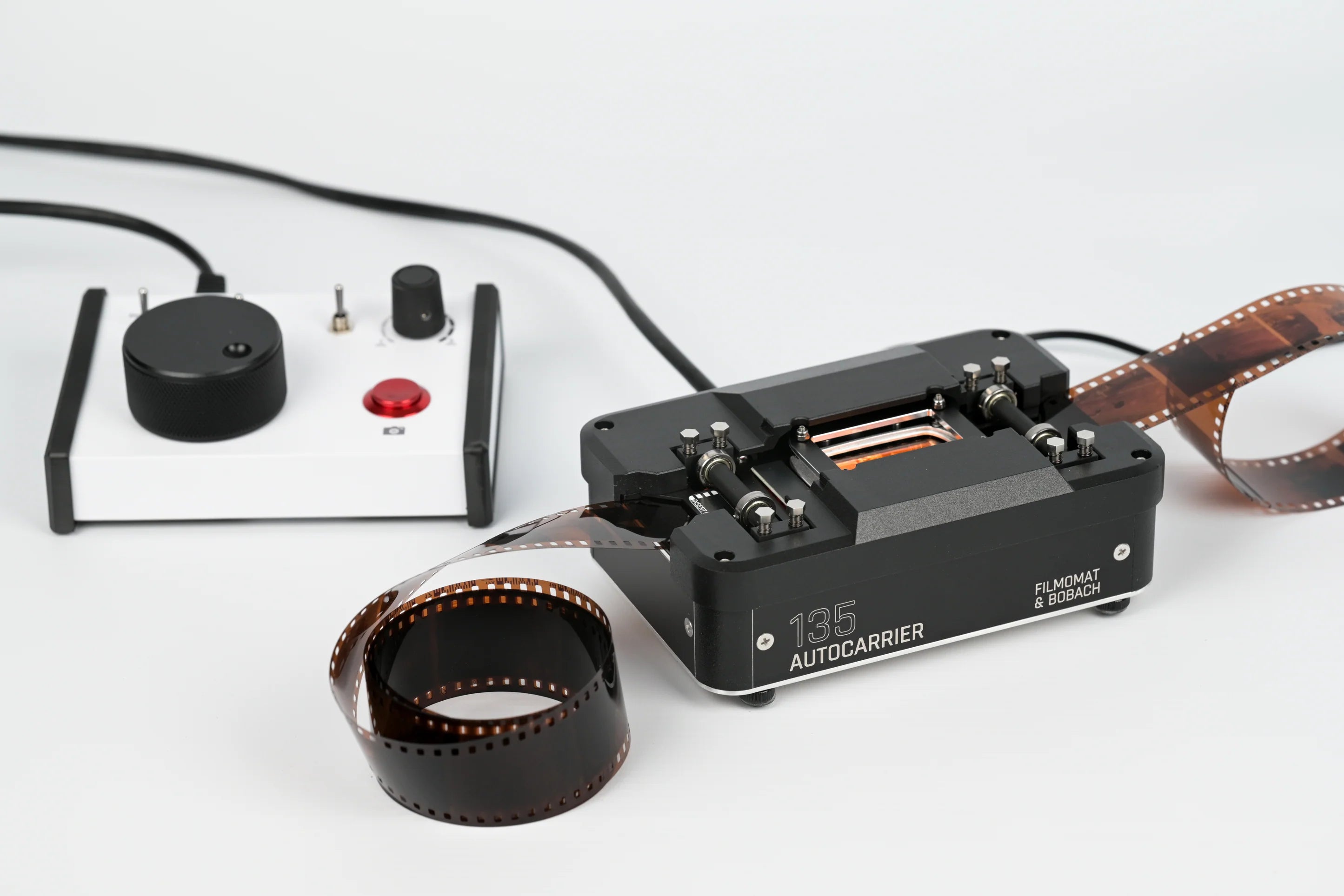

Scope of Delivery
135 Autocarrier

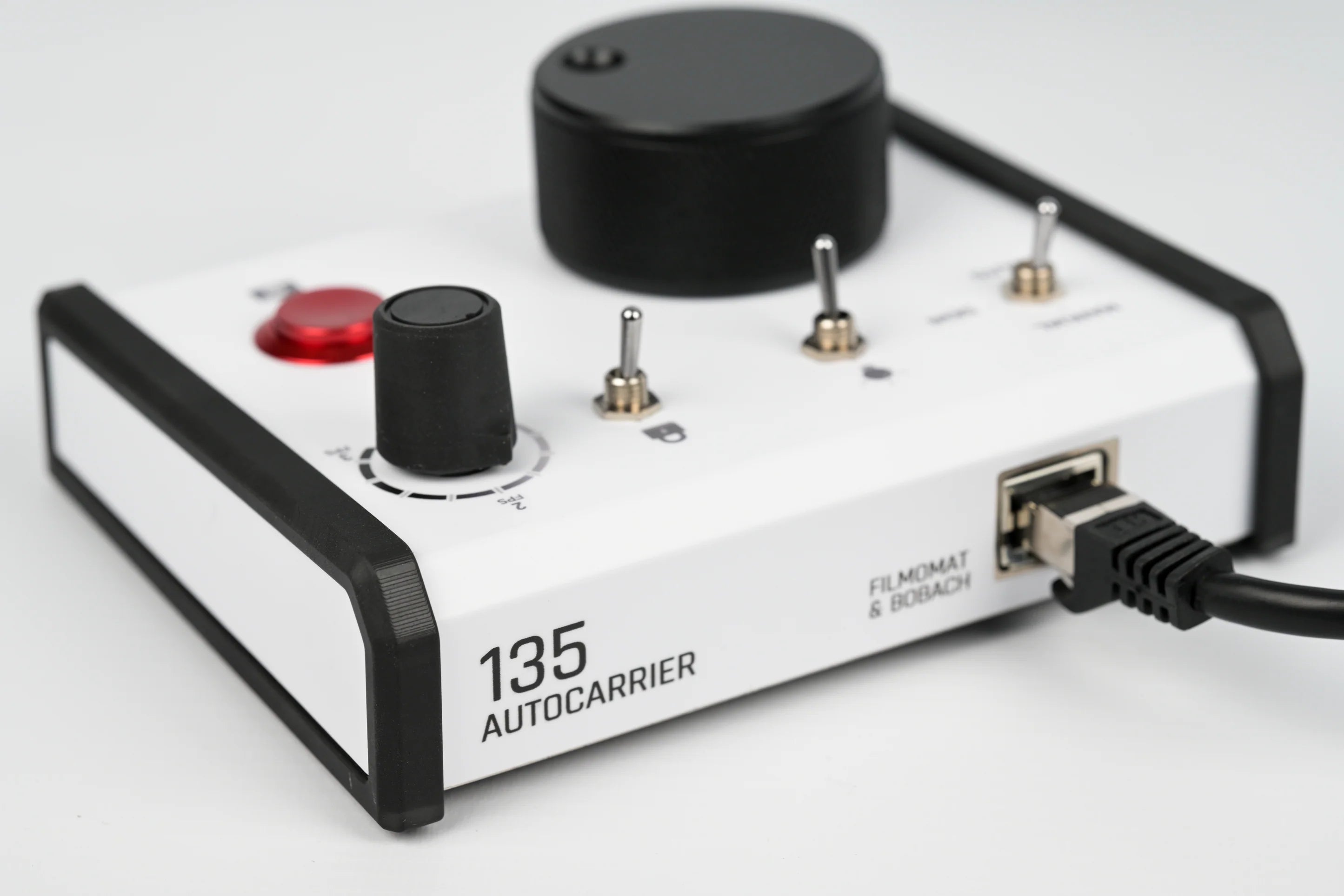

Autocarrier Control Panel
12V Power supply (100-250VAC universal voltage)
Half-frame Mask
Lens hood to prevent stray light (not pictured)
Please note: SmartConvert Software, SmartConvert Control Panel, camera, and camera tripod are not included.
To connect your camera to the Autocarrier, you need a 3.5mm jack adapter cable. This is NOT included. Please search for "[Camera Model] 3.5mm Jack Trigger Cable" to find a suitable cable.
Product Videos
Product Safety Information
Manufacturer:
Filmomat GmbH Frohschammerstrasse 14 80807 München info@filmomat.eu
